These days, things are moving fast in the world of electronics manufacturing, and everyone’s really craving high-quality, efficient ways to get products out the door. I recently came across a report from Research and Markets that estimates the global market for X-ray inspection equipment could hit around $1.54 billion by 2027 — quite impressive, right? A big part of that growth is fueled by all the recent improvements in circuit board tech. One of the key players here is the Circuit Board X-Ray Machine, which is pretty amazing because it gives you detailed insights into solder joints and internal structures — all without wrecking the board or doing destructive tests. With over 15 years in the surface mount technology (SMT) game, Morel Equipments Co., Limited has really grown into a full-on solutions provider. They don’t just stick to one thing — they offer a bunch of products like pick-and-place machines, automatic soldering robots, and various testing tools. As manufacturers aim to make their production faster and smoother, understanding the ins and outs of different Circuit Board X-Ray Machines is more important than ever to keep quality high and processes efficient.
Factors to Consider When Choosing a Circuit Board X-Ray Machine for Production
When you're choosing a circuit board X-ray machine for your production line, there are a few key things you really wanna keep in mind. First off, the resolution and sensitivity are super important—especially as circuit designs get tinier and more compact. Being able to spot tiny flaws can make or break the quality of your final product. So, make sure the machine's specs match up with what you actually need for your production—nothing worse than having a machine that’s overkill or not quite powerful enough.
Also, don’t forget to consider how well it handles thermal management. Heat can be a real pain since it can affect both the machine’s performance and the lifespan of the circuit boards you're inspecting. If possible, look for models that come with smart cooling features—they can help keep everything running smoothly, even when you're working at high volume.
And here’s a quick tip: check out how easy it is to use and maintain the machine. A straightforward, user-friendly interface can save your team loads of time during training and regular operations. PLUS, make sure support and maintenance options are easy to access—nothing's more frustrating than unexpected downtime messing up your schedule. Basically, focus on finding a machine that's a good blend of top-notch tech and user-friendliness—it'll really help streamline your circuit board production without all the headaches.
Comparison of Key Features Across Leading X-Ray Machine Brands in the Industry
In the fast-changing world of surface mount technology (SMT), picking the right circuit board X-ray machine is pretty important if you want to keep things running smoothly and efficiently. Honestly, each top brand offers its own set of features—things like resolution, speed, and how user-friendly they are—so it can feel a bit overwhelming trying to figure out which one’s the best fit. Some machines are all about super high-res imaging, great for catching tiny defects, while others focus on being faster to help you get more done in less time. That wide variety can make it pretty tricky for companies to know what they should really be looking for.
At Morel Equipments Co., Limited, we’ve been around the block—over 15 years, actually—in the SMT world. We get how important this choice is. We’re not just your average supplier; we’re a one-stop shop. We offer everything from pick-and-place machines to automated soldering robots, and we also have a good pulse on the best X-ray systems out there. By understanding what each machine offers, manufacturers can better equip their production lines—to keep quality high and efficiency even higher. Checking out all these options really helps businesses make smart investments in tech that actually works for their specific needs.
Circuit Board X-Ray Machine Key Feature Comparison
This chart compares the key features of various leading X-Ray machines based on their magnification capability, scan speed, and image resolution. The data illustrates the suitability of each machine for different production needs.
Understanding the Cost Implications of Different Types of X-Ray Machines for PCB Inspection
When it comes to inspecting PCBs, choosing the right X-ray machine can really make a difference in your overall production costs. There are a few main types you should keep in mind—like digital radiography, computed tomography, and the classic film-based systems. Each of these has its own price tag and operational perks, which can impact your budget more than you might think. Digital systems, for example, tend to cost a bit more upfront, but they usually pay off with faster inspections and lower costs down the line. On the flip side, traditional film methods might seem cheaper initially, but those ongoing expenses for film and development can add up pretty quickly.
**Tip 1:** Think about how many PCBs you're planning to inspect regularly. If you're dealing with high-volume production, it might be worth investing in a more advanced digital X-ray machine. But if your inspections are a bit more moderate or occasional, a simpler, more affordable option might be just fine.
**Tip 2:** Also, consider the size and complexity of the components on your boards. If your designs are pretty intricate, a computed tomography system could give you a more detailed view—though it does come with a higher upfront cost.
Getting a good grasp of these factors can really help clear up the decision-making process. It'll be easier to find an X-ray setup that not only fits your production needs but also keeps your budget in check.
Circuit Board X Ray Machine Showdown: Which One Fits Your Production Needs
| Machine Type | Resolution (µm) | Speed (samples/min) | Cost ($) | Best For |
| 2D X-Ray | 50 | 30 | 50,000 | General inspection |
| 3D X-Ray | 25 | 20 | 100,000 | Complex assemblies |
| Inline X-Ray | 40 | 50 | 80,000 | High volume production |
| Portable X-Ray | 100 | 10 | 30,000 | Field inspections |
| Laboratory X-Ray | 20 | 15 | 120,000 | Research & development |
Evaluating Image Quality Standards: Resolution and Clarity in Circuit Board X-Ray Machines
When you're looking at circuit board X-ray machines, the image quality really matters — like, it’s a game-changer. You want high resolution and sharp clarity so you can spot even the tiniest defects and make sure every electronic part is solid. As manufacturers keep pushing the boundaries with smaller, more complex designs, being able to see all those tiny details in the circuitry becomes more and more important. There’s definitely a growing demand for machines that deliver top-notch image quality without slowing things down or sacrificing efficiency, especially in industries where precision isn’t optional.
On the micro-focus X-ray tube front, the market's expected to hit around $10 billion by 2025, and then grow to nearly $16 billion by 2033 — that’s a 5.4% growth rate. Clearly, there’s big interest in advanced imaging tech that can meet super strict standards. Companies aren't just after high-res images anymore; they want features that make the images even clearer so inspections can be done with confidence. As this market keeps evolving, it’s crucial for manufacturers to stay updated so they can pick equipment that perfectly fits their specific production needs, ultimately boosting quality and efficiency all around.
The Role of Automation in Enhancing Production Efficiency with X-Ray Inspection Systems
In the fast-moving world of electronics manufacturing, staying efficient is more important than ever. That’s where X-ray inspection systems really shine—they’re crucial for automating quality checks. Industry reports show that adding these advanced X-ray machines can bump up production efficiency by as much as 30%. Not only does this cut down on human errors, but it also speeds up inspection times. Plus, with automation in place, you get real-time monitoring. That means faster production lines and better detection of defects, even those sneaky ones that humans might miss during manual checks.
When you're picking out an X-ray machine for your factory, think about how well it can integrate with your existing automation setup. Go for models that connect easily—this can save you a good chunk of money and help you get nicer, more detailed reports on your data.
**Pro tip:** Make sure to train your team on the latest X-ray tech. Getting everyone up to speed means you can get the most out of these systems—more accurate inspections and quicker production. Oh, and don’t forget—regular maintenance of your X-ray machines is super important to keep things running smoothly and reliably.
Recent Industry Trends: Advances in X-Ray Technology and Their Impact on PCB Manufacturing
The world of PCB manufacturing is changing pretty fast right now, mainly because of some big breakthroughs in X-ray tech. Just recently, we've seen some cool innovations that help manufacturers get way more precise and efficient at what they do. These high-res imaging tools can now peek inside multi-layer boards, catching hidden defects that could mess up the performance or even the longevity of electronic gadgets. Things like solder problems or internal circuit flaws? The new X-ray machines can spot those effortlessly, making them a must-have in ensuring top-notch quality.
Plus, with automation and better software integration, the whole inspection process has gotten a serious upgrade. Today’s machines are loaded with AI-powered analysis tools that not only speed things up but also cut down on human mistakes. They process tons of data on the fly, giving manufacturers the info they need to make quick, confident decisions. That means responses to production hiccups are faster, smoother, and more reliable. As demand for super-advanced and reliable PCBs keeps climbing, it’s clear that X-ray tech isn’t just a nice-to-have anymore — it’s gonna be a key player in boosting both efficiency and product quality down the line.

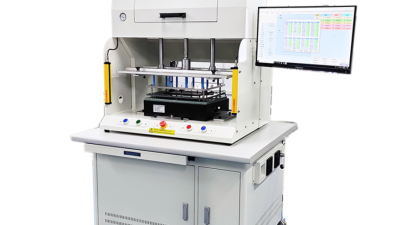

Maximize Your Electronics Repair Skills with the IN-CIRCUIT TESTER PMP-818S: A Comprehensive Guide
Maximizing your electronics repair skills is a crucial step in achieving excellence in the field, and the IN-Circuit Tester PMP-818S is a game-changing tool that can elevate your capabilities. This high-performance testing solution is expertly crafted for the electronics manufacturing industry, offering precision and efficiency that can transform your approach to printed circuit board assembly (PCBA) quality control. With its ability to identify defects like short circuits, open circuits, incorrect component values, and faulty connections, the PMP-818S empowers technicians to diagnose and resolve issues swiftly.
Utilizing the PMP-818S not only enhances your diagnostic skills but also ensures that you can maintain the reliability and functionality of electronic products throughout the manufacturing process. Its advanced testing features allow for thorough inspections, making it an indispensable resource for anyone devoted to delivering flawless electronic devices. Whether you are a seasoned professional or just starting your journey in electronics repair, integrating the PMP-818S into your toolkit can greatly enhance your effectiveness and confidence in addressing complex circuit challenges.
FAQS
: The main types include digital radiography, computed tomography, and conventional film-based systems. Each type varies in price and operational efficiency.
Digital X-ray systems are generally more expensive upfront but offer quicker inspection times and lower long-term costs compared to traditional methods.
High-volume production may justify investing in a more advanced digital X-ray machine, whereas low to medium volume may benefit from a more cost-effective solution.
For intricate designs, a computed tomography system might provide the best depth of analysis, despite its higher initial cost.
Automation can increase production efficiency by up to 30%, reduce human error, and accelerate inspection times through real-time monitoring.
Manufacturers should opt for X-ray machines that offer seamless connectivity with existing automation systems to achieve cost savings and improved data reporting.
Investing in staff training ensures that employees can leverage the latest X-ray technology effectively, maximizing inspection accuracy and production throughput.
Recent innovations include high-resolution imaging capabilities, AI-driven analysis tools, and enhanced software integration, which have improved precision and efficiency in inspections.
They enable the detection of hidden defects and issues such as solder joint problems and internal circuit anomalies, which are crucial for maintaining the integrity and performance of electronic devices.
Regular maintenance is crucial to maintain high efficiency and reliability in inspection processes, ensuring that the machines operate optimally.
Conclusion
When it comes to PCB manufacturing, picking the right Circuit Board X-Ray Machine is a pretty big deal. It’s not just about getting anything; you want to make sure it boosts your production efficiency and keeps quality top-notch. Things like the key features, image clarity, and how much automation it offers—those are all important points to consider, especially to fit your specific needs. You’ll find that leading brands have a bunch of options, each with its own perks, tailored for different inspection tasks.
And let’s not forget, understanding the costs involved with various types of X-Ray machines is crucial if you want to make a smart investment. As tech keeps advancing, these systems are getting better and more sophisticated, helping you ramp up productivity without sacrificing resolution or clarity during inspections. Here at Morel Equipments Co., Limited, we draw on over 15 years of hands-on experience in the SMT industry to bring you all sorts of solutions—from the latest Circuit Board X-Ray Machines to everything else you might need to support your manufacturing goals.
